Can-Am Maverick X3 Bullet Proof Radius Rod Plate with Tow Ring by CT Race Worx
Can-Am Maverick X3 Bullet Proof Radius Rod Plate with Tow Ring by CT Race Worx
Click to zoom in

Can-Am Maverick X3 Bullet Proof Radius Rod Plate with Tow Ring by CT Race Worx

CT Race Worx has taken 2 different grades of aluminum to create the cleanest and strongest billet aluminum tow ring ever put on a UTV!

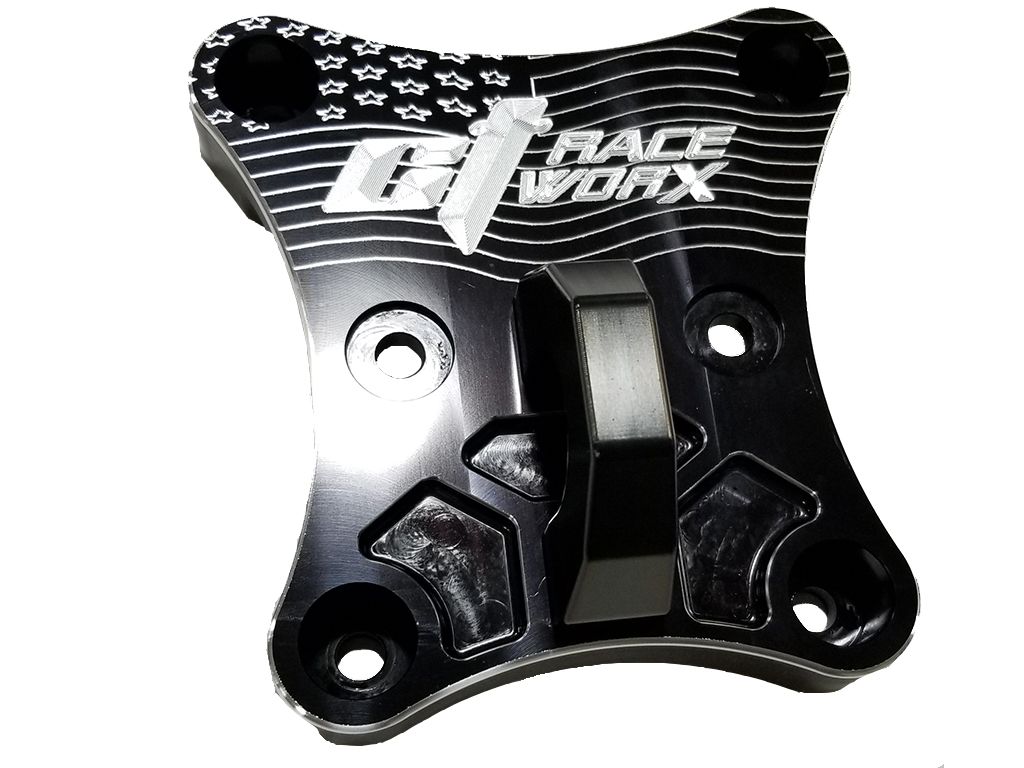

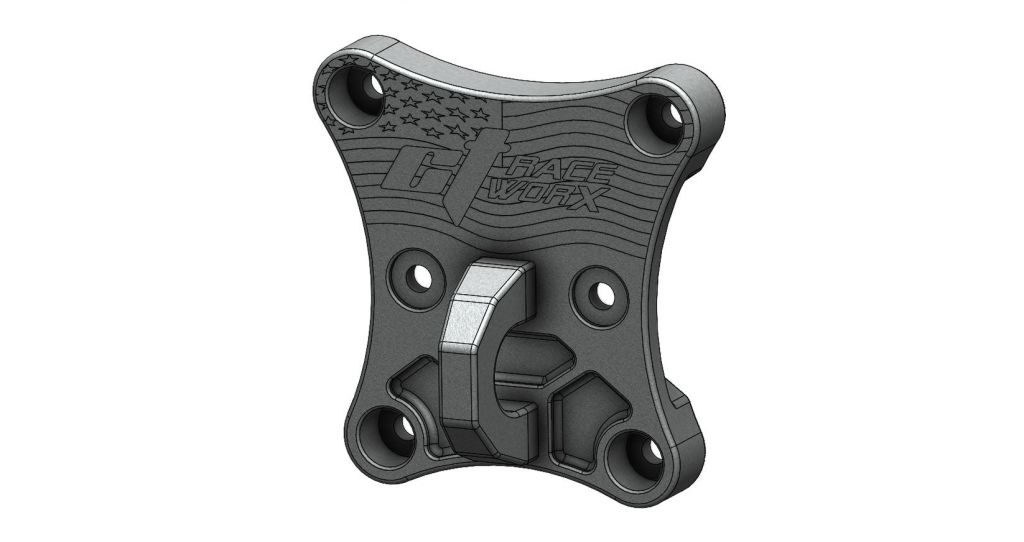

The base plate starts out as a piece of 1.25" thick 6061 T6 aluminum. When machining is done, it is still 1.25" at the thickest point and the majority of the way through the plate for maximum strength and rigidity. Next, they machine the tow ring from a piece of 1.25" thick 7075 T6 aluminum, which is roughly twice the strength of 6061 aluminum.  CT Race Worx choose this material because of the tow ring is going to see the most of the stress and needs the thread strength. The tow ring recesses into the face of the plate and is pressed into place, the 1/2" bolts come in from the back side and have 1.75" of thread engagement into the ring, adding strength to the assembly. In production, these plates will be anodized black, as well as the tow point, and then machined again in certain areas to give them a look so nice you can hang it on the wall.



*PLEASE ALLOW 1-2 WEEKS FOR DELIVERY



925DC0227
$185.00
$185.00

This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA -certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise-regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
